• Integrated with high power UV LED, low thermal resistance and low light decay
• High efficiency heat pipe radiator and fan cooling design, instant heat dissipation
• Overheat protection by built-in temperature sensor
• UV LED breakdown warning, effectively guarantee the production quality
• Instant on and off, no need preheating
• Adjustable UV intensity from 0 to 100%
• Automatic running mode, set the irradiation time from 0 to 999.9S
• Manual running mode, switch signal controls the irradiation time
• Accumulated irradiation time, record the use life
• Low frequency or high frequency switch signal controls the light source on and off
• Quartz glass fixed at the front of the UV LED, high UV light transmittance and easy clean

•Curing size 100*100mm;wavelength option 365nm,395nm and 405nm


Application:

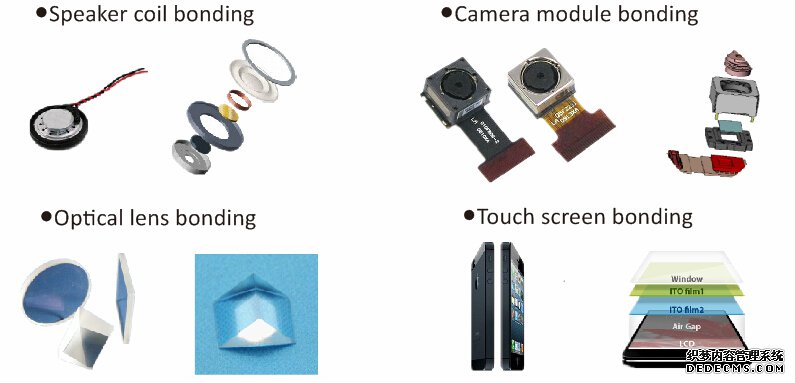

GreatUV UV LED flood curing machine is for UV curing. It creates a photochemical reaction that instantly cures inks, adhesives and coatings. It is widely used in optics, electronics, semiconductors, and so on.Some applications are listed as following.
